CS1100

Development of a one package remote monitoring server with basic functions and valuable features.

・Adopting a flexible design where the Control unit and Power unit are kept separate

・All in one package include Web server and mail client.

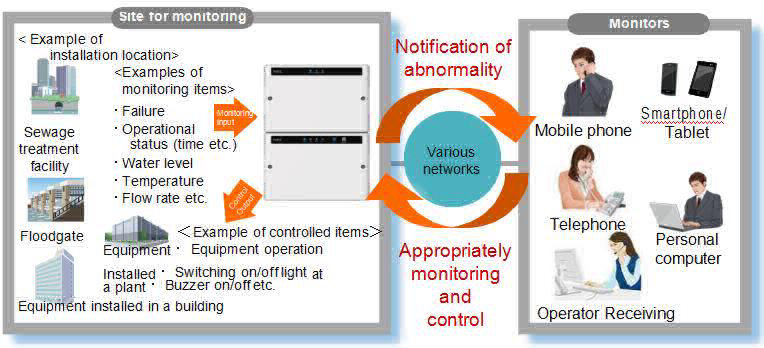

Overview

Features  Using a flexible installation

With a structure where the

Notification unit and Power unit are kept separate, it can be flexibly installed in accordance with the site. Two directions for vertical and horizontal. DIN rail mounting can also be used.

Universally accepted and scalable external input

Non voltage digital input, 0-20/4- 20mA current input and 0-5V/1- 5V voltage input are selectable

Support Text to speech

When notified, text will change to

the voice message. Messages are available in

English or Chinese (Simplified or Traditional Chinese). Thereby, notification in an emergency is possible.

Enhanced Web functions

It can also be used as a Web

monitoring device as there are built-in Web server functions. By using a regular browser it is possible to browse various data, such as a notification history, operation history, as well as settings. It is also possible to browse the daily, monthly and annual reports and display trend graphs.

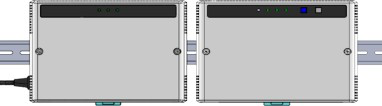

DIN rail mounting mechanism Standard unit mounting

Features

Supporting various

communication infrastructures

Supporting major communication infrastructures such as general analog line and LAN. A suitable communication infrastructure can be selected according to the environment of the site, where it is.

Variety of Notification patterns

Any notification method can be chosen from Voice, Email, Data depending on the requirement. Notification site can be set for each monitoring input. Since notification methods can also be.

Linking functions

This UNIT is added as a notification

method. It is possible to control the digital output of separate it in remote location by activating the corresponding it at the site. Owing to IP communication, it can be used by various communication networks.

infrastructures. Digital

to be installed. Multiple

communication infrastructures can be used in combinations.

               Activation

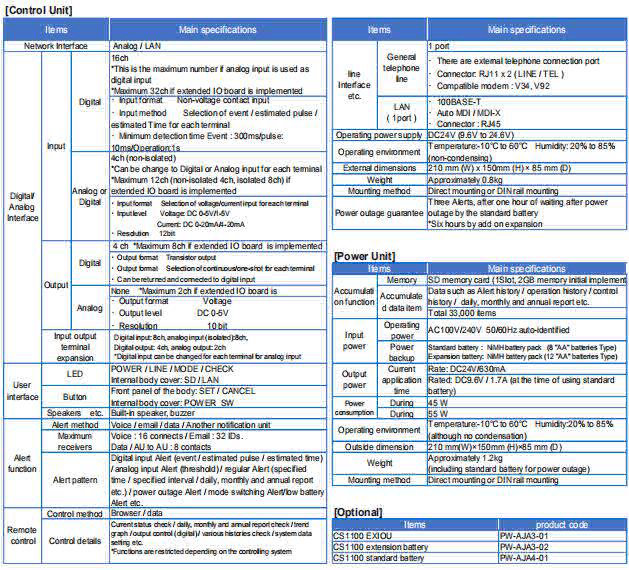

Specifications
